Machinery related to all departments of weaving process of textile.
Weaving
Showing 1–20 of 76 results
- Support Machinery, Weaving

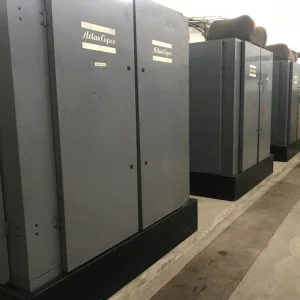

Atlas Capco ZR355 Compressors
Atlas Capco ZR355 Compressors
Year: 2000(1 machine) – 2001 (2 machines). Type: ZR355. Capacity: 355/326 Kw. Max Working Pressure: 7.5 Bar. Input Power: 316Kw. RPM: 1485
With
MD 1000 Air Dryers: Year: 2000 (1 machine) – 2001 (2 machines). Capacity: 47kwSKU: SA220624WSA - Water Jet Looms, Weaving
Brand New Shuttleless Water Jet Looms
Brand New Shuttleless Water Jet Looms
Model: JW823.
Available Reed Width: 150/170/190/210/230/260/280/320/340/360/420/450 cm
Sing/Double/Three & Four Nozzle available:
Shedding Motion: Plain/Cam/Dobby
Let-off: Mechanical/Electronic
Take-Up: Mechanical/Electronic
Installed Power: 1.5Kw to 4.5Kw. Speed: 600 to 1200 rpm (depends on fabric)
Weft Insertion Rate: 2280m/m
Weft Density: 5 to 80 picks/cm
Cutter: Mechanical. Leno Device: Planetary Gear Type
Accessories per Loom:
Reed. Weft Accumulators: Panel box with LCD Display. Heald Frames: 6 pcs (for plain). Beam & Cloth Roller: Heald WireSKU: SA271024WWX - Air Jet Looms, Weaving
Dornier Airjet Looms with Staubli Jacquard
Dornier Airjet Looms with Staubli Jacquard
Types: AWV 6/J (x16), LWV6/ (x27). Width: 2300 mm. Year: 1997-2002.
Brief technical information:
- Working Width: 2300 mm. Colours: 6. Weft Feeders: 4.
- Batcher Make: Neuenhauser. Jacquard Make: Staubli
- Jacquard Model: LX3200 (x5), LX3201 (x33), LX3202 (x3) 7-22 (x2)
- Jacquard Format: 6144. Controller: Staubli JC5/. Controller year: 2000-2004
- Electrical Supply: 3 Phase 380-440v, 50Hz. Spare parts: All related spare parts and accessories available in the factory (If any).
SKU: SA191124WAD - Air Jet Looms, Weaving
Dornier Airjet Terry Looms LTNF-4S
Dornier Airjet Terry Looms LTNF-4S
Year: 10 x 1993 + 12 x 1995 +8 x 1997. Width: 2600 mm. 4 colours. Electronic STAUBLI dobby model 2667 (12 shafts fitted)
each machine complete with following accessories :
01 warp beam with flanges diam 1000 mm for pile
01 warp beam with flange diam 800 mm for ground
02 weft accumulator heads with stand and creel
01 batching motion. 5.000 heald wires and drop wires. 06 heald frames
SKU: SA191124WAD-LTNF - Air Jet Looms, Weaving
Dornier Easy Terry AirJet Weaving Looms with Dobby
Dornier Easy Terry AirJet Weaving Looms with Dobby
Machine Type: Easy Terry. Year: 2007. Working Width: 300 CM. with Staubli Dobby 2861/2. Weft Insertion capacity: 6 per loom. No. of Colour working: 4 per loom. Accessories Per Loom: Pile Beam: 1. Ground Beam: 1. Reed: 1. No of Frames: 16. Heald Wire: 6250, Droppers: 6250
SKU: SA210824WAD - Rapier Looms, Weaving
Dornier HTVS 8J Jacquard Looms
Dornier HTVS 8J Jacquard Looms
Dornier Jacquard looms HTVS 8/J width 190 cm. Year 1999, 5 -ESC Color Selection (4) Filling feeder, Dialog -2 top beam arrangement with no top beam. 5drop wire contact bar with no drop wires. batching motion, 800 mm warp beam on 940 mm loom set up.
With Staubli Jacquard LX 1600 – 5120 capacity 2048 installed – year 1-1995
With Staubli Jacquard LX 1600 – 5120 capacity 3840 installed – year 12-1998
With Staubli Jacquard CX 960 – 3072 capacity 2048 installed – year 03-1995SKU: SA230625WAD-HTVS8J - Rapier Looms, Weaving
Dornier HTVS 8J Jacquard Looms
Dornier HTVS 8J Jacquard Looms
12 x Dornier HTVS 8/J Jacquard weaving machine. width 180 cm, year 1998, Dialog – 2 control box, Machine has on loom cloth winder, (6) IRO Filling Feeders, (7) ECS color selectors, (6) drop wire contact bars, (1) 800 mm warp beam on 940 mm loom set up. With Jacquard Staubli CX 880 – 2688 capacity 1408 & 1920 hooks installed – Year 04-1998
5 x Dornier HTVS 8/J Jacquard weaving machine, width 180 cm, year 1996, 1998, 2000, Dialog -1 control box, Machine has on loom cloth winder, (6 to 8) IRO Filling Feeders, (6 to 8) ECS color selectors, (6) drop wire contact bars, (1) 800 mm warp beam on 940 mm loom set up.
With Jacquard Staubli CX 960 – 3072 capacity 1152 installed (year – 10-1996) (3 looms)
With jacquard Staubli CX 960 – 3072 capacity 1280 installed (year – 10- 1996) (1 loom)
With jacquard Staubli CX 960 – 3072 capacity 2048 installed (year – 03-1995) (1 loom)SKU: SA230625WAD-HTVS8S-Dobby-1 - Rapier Looms, Weaving
Dornier HTVS 8J Jacquard Looms 210cm
Dornier HTVS 8J Jacquard Looms
1 x Dornier HTVS 8/J Jacquard weaving machine, width 210 cm, year 2000, Dialog -1 control box, 8 IRO Filling Feeders, 8 ECS Color Selectors, 6 drop wire contact bars, (1) 800 mm warp beam in 940 mm loom, cloth winding unit missing from machine homemade version under loom. with Staubli Jacquard CX 880 – 2688 capacity …………. installed – year 01-2000
1 x Dornier HTVS 8/J Jacquard weaving machine, width 210 cm, year 2000, Dialog -2 control box, 8 IRO Filling Feeders, 8 ECS Color Selectors, 6 drop wire contact bars, (1) 800 mm warp beam in 940 mm loom, cloth winding unit missing from machine homemade version under loom. with Staubli Jacquard LX 1600 – 5120 capacity 3840 installed – year 12-1998
1 x Dornier HTVS 8/J Jacquard weaving machine, width 210 cm, year 2000, Dialog -2 control box, 8 IRO Filling Feeders, 8 ECS Color Selectors, 6 drop wire contact bars, (1) 800 mm warp beam in 940 mm loom, cloth winding unit missing from machine homemade version under loom. with Staubli LX 1600 – 5120 capacity 3840 installed – year 12-1998
SKU: SA230625WAD-HTVS8S-Dobby-1-1 - Rapier Looms, Weaving
Dornier HTVS 8S and 4S Dobby Looms
Dornier HTVS 8S and 4S Dobby Looms
5 x Dornier HTVS 8/S Dobby weaving machine. width 190 cm , year 1998 , Dialog -2 control box, Staubli 2670 dobby , 24 lifting units in dobby, 18 Grob harness, 4 IRO Filling Feeders , 4 ECS Color Selectors , 6 drop wire contact bars, (1) 800 mm warp beam in 940 mm loom, machine has on loom cloth winding unit
2 x Dornier HTVS 4/S Dobby weaving machine, width 210 cm , year 1995 , serial # 36479, Dialog -1 control box, Staubli 2667 RSV dobby , 24 lifting units in dobby, 10 Steel Heddle harness, 6 IRO Filling Feeders , 3 ECS Color Selectors , 6 drop wire contact bars, (1) 800 mm warp beam in 940 mm loom, machine has on loom cloth winding unit.
SKU: SA230625WAD-HTVS8S-Dobby - Air Jet Looms, Weaving
Dornier LWV 6J Airjet Jacquard Looms
Dornier LWV 6J Airjet Jacquard Looms
Dornier LWV 6/J AIR JET Jacquard weaving machine. width 190 cm, year 2000, Dialog -2 control box, Machine has on loom cloth winder but parts are missing (2) IRO Filling Feeders, (6) main air nozzles, all modules in loom cabinet are missing, Top Micro Prosser display is missing (6) drop wire contact bars, (1) 940 mm warp beam With jacquard Staubli CX-880 – 2688 capacity – installed – 1920. Year – 07-2000
SKU: SA230625WAD-LWV6J - Rapier Looms, Weaving
Dornier PTV 8J Jacquard Looms
Dornier PTV 8J Jacquard Looms
Dornier PTV 8/J Jacquard weaving machine. width 190 cm, year 2002, serial # 44880 to 83, Dialog -2 control box, Machine has on loom cloth winder, (8) IRO Filling Feeders, (8) ECS color selectors, (6) drop wire contact bars, (1) 800 mm warp beam on 940 mm loom set up. with Jacquard Staubli – LX 1600B – 3072 capacity – installed – 2048 Year – 10-2002
SKU: SA230625WAD-PTV8J - Support Machinery, Weaving
Electronic Jacquard GT568 High-Speed Machines (Brand New)
Electronic Jacquard GT568 High-Speed Machines (Brand New)
Application: suitable for air-jet, rapier, gripper shuttle-less loom, weaving all kinds of jacquard fabric.
Control: CF JC568 type independent control box
Housing: overhead type
Open style: double-lift and clear shed
Maximum circular weft count: 65535wefts （EP a single figure capacity）
Jacquard needle number: 1408、1536、2816、3072、3328、4096、5120、6144 needlesGT568 HIGH-SPEED ELECTRONIC JACQUARD MACHINE
The service life is 2 times compared to a year-on-year basis. Save electricity by 50% compared to
year-on-year basisSKU: n/a - Support Machinery, Weaving
Electronic Jacquard GT568T High-Speed Machines (Brand New)
Electronic Jacquard GT568T High-Speed Machines (Brand New)
Application: the main applicable to jet shuttle-less loom, rapier, and gripper ascended,
weaving all kinds of jacquard fabric.
Open forms: double lift and clear openings
Pattern control mode: electronic（CFJC600 control box, a single pattern maximum 30M)
Apply loom sley: 1900~4600mm
Longitudinal harness group number: 32
Jacquard needle number: 6144、8192、10240、12288、14336GT568T HIGH-SPEED ELECTRONIC JACQUARD MACHINE INNOVATION CAM STRUCTURE
The service life is more than 2 times compared to a year-on-year basis.
running speed can reach more than 600r/min (high quality and stable operation)
With a 90 ° open pause time, can prolong the service life of componentsSKU: SA020324WSC
