Projectile Looms
Showing all 7 results
- Projectile Looms, Weaving

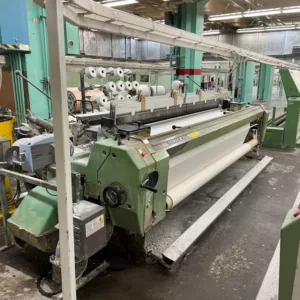

Sulzer P7100 Projectile Looms
Sulzer P7100 Projectile Looms
width: 330 cm ( 4 looms, Year: 1998). Width: 360 cm (34 Looms, year: around 1990). Cam motion: Cam Capacity: 10 to 14. installed Levers: 8 to 10. No. of Heald Frames: 4 per loom. Maximum 2 Colour. 1 weft feeder. Dropper & Heald wires: 9000 per loom. Beam/Cloth Roll: 1.5 per loom. 34 pcs of TLL for 360cm looms.
SKU: SA080225WPS - Projectile Looms, Weaving
Sulzer P7100 Projectile Looms (SOLD)
Sulzer P7100 Projectile Looms
Model: Sulzer P7100 B280 N1 EP D1. Width: 280cm, single color with 1 weft accumulator, 1 beam (2 split beams), 1 cloth roll, 4 Steel Heddle harness frames with heddles as fitted, cam box with capacity for 10 and 6 cams installed, side tuckers (no center tucker), 6 warp stop motion bars with droppers as fitted, oiling system mechanical (some w electric) let off, approx 4000-5000 heddles/droppers,
110,000 series – 120,000 series –
SKU: SA241023WPS - Projectile Looms, Weaving

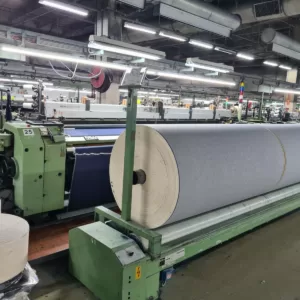

Sulzer P7200 Weaving Looms
Sulzer P7200 Weaving Looms
Model: P7200 B 390 EP-R-K. Year: 1996 -1 997. Shedding Motion: Cam Box. 10 cams fitted. 10 leveers installed. Harness Frames: 10 pcs. Weft Accumulators: 2pcs. Warp Beams: 03 Half Warp Beams. Batcher Take up. 01 pc Healds & droppers as fitted.NOTE:
All looms have side tucking installed but without needles. As looms are currently running on Leno.
Along with available used & new spares (if bought all machines as a lot).SKU: SA231123WPS - Projectile Looms, Weaving
Sulzer Projectile Looms P7100 width 360cm
Sulzer Projectile Looms P7100 width 360cm
Model : P7100. Shedding Mechanism : Cam. Working Width in cm : 360. No Of Colors : 2. No of Prewinder/Set : 2. Projectile Type : D1. Shedding Motion Make : Sulzer. Shedding Motion Capacity : 10. Shedding Motion Installed Capacity : 10. Selvedge Type : Tuck-in. Let-Off Motion : Electronic. Tuck In Available : Side (only). No of Back Rest Roll : 2. Warp Beam Dia in mm : 940. No of Frames Supplied : 8. No of Warp Beam Supplied : 1.5. No of Warp Stop Bar : 6. Cloth Take-Up Type : Batching Motion. Beam Type : Twin
SKU: SA141124WPS-1 - Projectile Looms, Weaving
Sulzer Projectile Looms P7200 width 360cm
Sulzer Projectile Looms P7200 width 360cm
Model: P7200. Shedding Mechanism: 22 x Cam, 2 x Dobby. Year: 1995. Width: 360 CM. No Of Colors: 2. No of Prewinder/Set: 1. Shedding Motion: 22 x E10, 2 x 2665. Capacity: 22 x 10, 2 x 18 Shafts. Installed Capacity: 22 x 8, 2 x 15. Selvedge Type: Tuck-in. Let-Off Motion: Electronic. Tuck In Available: Side (only). No of Frames Supplied: 22x 6, 2 x 8. No of Warp Beam Supplied: 1.5. No of Cloth roller Supplied: 1.5. No of Warp Stop Bar: 5. Beam Type: Twin. Projectile Type: Carbon. No of Back Rest Roll: 2 (Torsion type). Warp Beam Dia in mm: 940-1040
SKU: SA141124WPS - Projectile Looms, Weaving

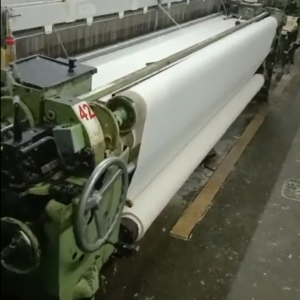

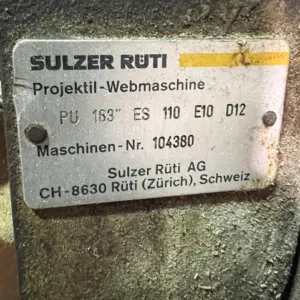

Sulzer PU 183″ E10 D12 Projectile Looms
Sulzer PU 183″ E10 D12 Projectile Looms
Cam box with 4 cams & 4 under-motions. 4 heald frames. Heald wire & drop wire as fitted. Projectiles as fitted. Double whip roller. Batching Motion. One full width Beam. 1 Loepfe Brake. No weft feeder / no weft feeder control box / no weft feeder stand. Mechanical Let Off
SKU: SA110524WPS
